Anycubic Photon Mono M7 Max

A COB light source paired with a Fresnel lens and a light-uniformity algorithm reaches ≥90% light uniformity and 4500±500 μW/cm² intensity across the 13.6-inch 7K mono LCD, at 46×46μm XY resolution.

Mechanical sensors dynamically adjust the lifting height of each layer and the light-off timing based on slicing data and resin backflow, rather than using a fixed lift height for every layer.

The 1300ml resin vat automatically heats to 25°C by default (user-adjustable 20–40°C) and stops heating once printing starts. An air-pump module and probe sensor monitor resin level and automatically refill it.

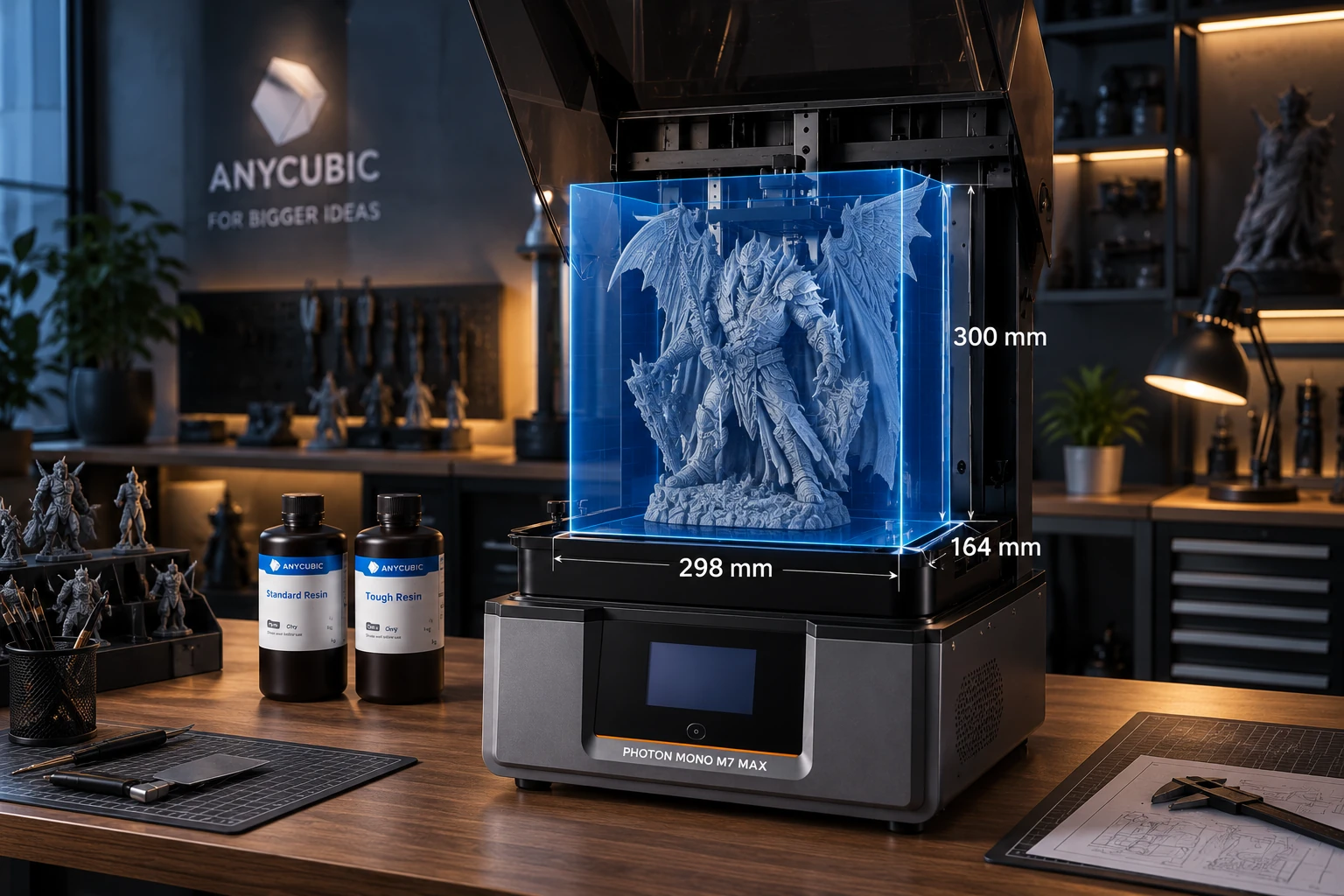

A 298×164×300mm build volume for large single prints or multiple smaller models printed together.

The printer monitors internal component connections, resin residue in the vat, resin level, and failed prints (minimum 15×15mm anomaly detection), with alerts for each.
